Products Description

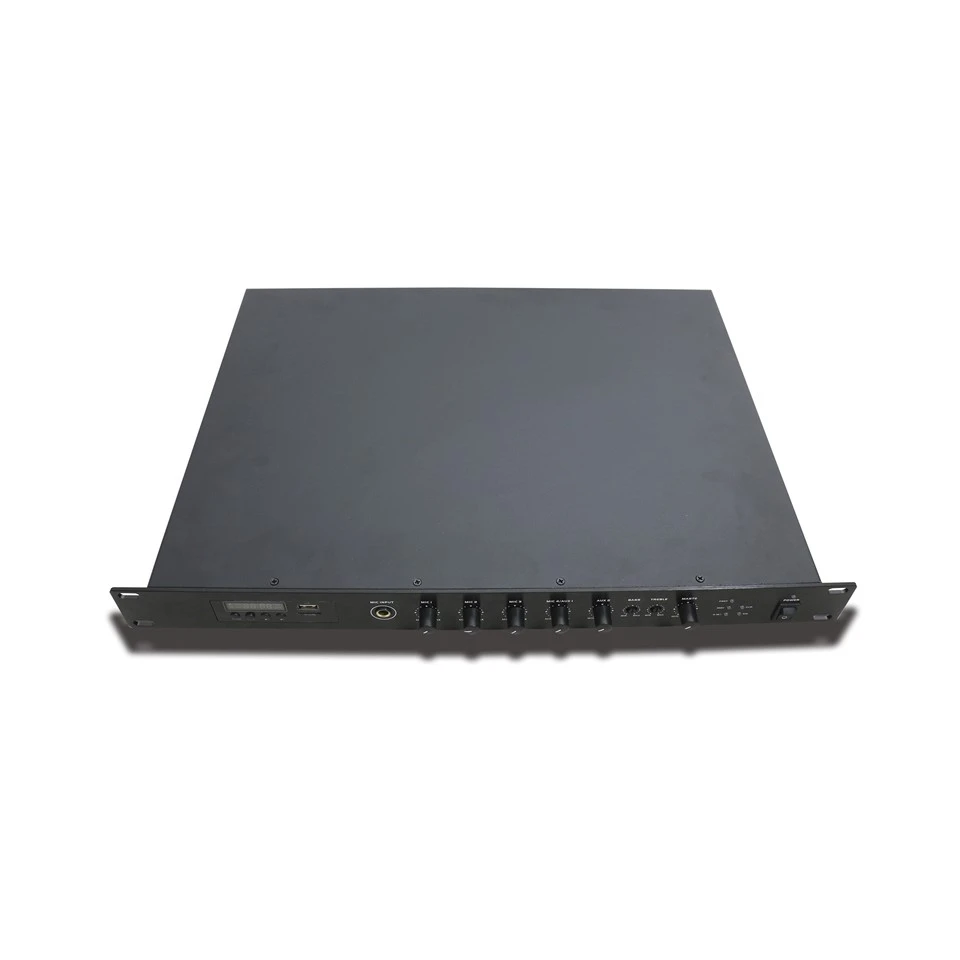

The IP Audio Amplifier TA-P35 is an essential part of modern audio systems, features 4 microphone inputs and 2 auxiliary inputs, allowing users to connect multiple audio sources easily. Each input has its own gain control, ensuring clear sound, while the master volume control simplifies overall sound adjustments.
In addition to its input options, the IP Audio Amplifier includes a Dante audio input and DSP control input for advanced audio management. It also has switchable speaker outputs for both 100V and 4-16 Ohm systems, making it versatile for different setups. The automatic mute function ensures clear announcements, while the built-in MP3, tuner, and Bluetooth module with a screen display provide convenient audio streaming options.
Safety and ease of installation are key features of the IP Audio Amplifier. It includes short circuit protection for speaker outputs, enhancing reliability during use. With a standard 1U 19-inch size and detachable mounting ears, the IP Audio Amplifier is easy to install in various environments.
IP Audio Amplifier Feature
Specifications
|
Model Number |
TA-P35 |
|
Rated Power Output |
350W |
|
Output |
100V or 4-16 ohm switchable |
|
Frequency Response |
80-16000Hz,+/-3dB |
|
THD |
Less than 0.5%at 1kHz(1/3 Rated Power) |
|
S/N Ratio |
Better than 80dB |
|
Tone Controls |
BASS:100 Hz(+/-10dB),TREBLE:10k Hz(+/-10dB) |
|
Controls |
All input gain,1 treble,1 bass,1 mute,and power switch |
|
Cooling |
Internal 24VDC fan, extensive heat sinking |
|
Indicators |
15W Power indicator LED, PROT, 100V, 4-16 OHM, CLIP, SIG |
|
Protection |
Current limiter,short circuit and thermal protection circuits |
|
Power Consumption |
470W |
|
Power Requirments |
220-240VAC,50/60 Hz;24VDC for TD version |
|
Dimensions |
44.5(H)×483(W)×330(D)mm |
|
Weight |
5.6KG |
|
Languages |
English |
|
Warranty |
2 year |
Solution
Company Profile
FAQ
1. Q: Where can digital IP public address systems be applied?
A: Schools, particularly those with campus networks.
Chain supermarkets.
Medical Facilities
Large enterprises.
Office buildings and skyscrapers.
Rural connectivity projects.
2. Q: What products are needed to use with the IP Audio Amplifier to build an IP PA System?
A: It can be paired with our analog speaker products, IP speakers, IP microphones, and software products to establish an IP PA System and manage it by zones.
