Product Details

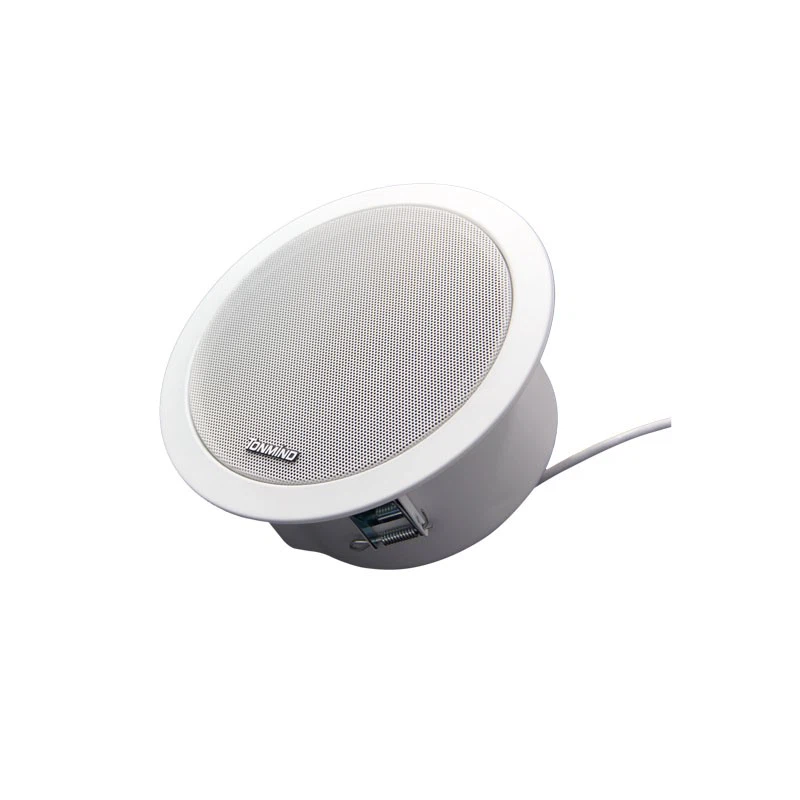

The ONVIF Ceiling Speaker boasts a seamless design, seamlessly integrating with its environment. Its flush-mounting capability simplifies installation, making it an ideal choice for a variety of settings such as schools, offices, stores, and hospitals.
Equipped with a built-in microphone, this ONVIF Ceiling Speaker facilitates two-way intercom communication, enhancing its utility in diverse applications. Compatibility with VoIP SIP devices and ONVIF VMS/NVR systems ensures seamless integration into existing setups.
Support for pre-recorded messages and HTTP API further enhances the functionality of the ONVIF Ceiling Speaker. The inclusion of the 48K OPUS Audio Codec guarantees superior sound quality, ensuring clear and crisp audio transmission.
The implementation of Power over Ethernet (PoE) eliminates the need for a local power supply, streamlining deployment and reducing infrastructure costs. Users can also leverage Tonmind audio management software, including Tonmind Audio Manager, Tonmind PA System Lite, and Tonmind PA System Pro, for effortless and efficient control over the ONVIF Ceiling Speaker.
ONVIF Ceiling Speaker
- Two-way intercom communication
- Compatible with VoIP, SIP devices (IPPBX, IP Phone) via SIP
- Compatible with IP Camera VMS/NVR via ONVIF
- Support Pre-recorded messages
- Support HTTP API for alarm in transmit
- 48K OPUS Audio Codec, AEC, AGC, ANR
- 15W amplifier, PoE Power Supply
Specifications
|
Audio |
|
|
Codec |
OPUS 48 kHz, MP3 44.1 kHz, G.722 ADPCM 16 kHz, G.711 PCMU 8 kHz, G.711 PCMA 8 kHz |
|
MIC |
|
|
Built-in MIC |
Yes |
|
Speaker |
|
|
Max SPL |
96dB |
|
Frequency Response |
100Hz ~ 18KHz |
|
Frequency Range |
500-2KHZ +-10dB |
|
Harmonic Distortion |
0.1@1kHz |
|
Signal to Noise Ratio |
91dB |
|
Network |
|
|
Security |
Password protection, IP address filtering, Digest authentication, User access log |
|
Network Protocol |
SIP, ONVIF, HTTP, IPv4, DHCP, RTSP, RTP, RTCP, TCP, UDP, ARP, FTP, TFTP, NFS, NTP |
|
Network Interface |
10/100 Base-TX, RJ45 |
|
VoIP |
Support SIP protocol for integration with VoIP systems, integrated with SIP/PBX. Support ONVIF protocol for interaction with security systems, integrated with ONVIF VMS/NVR. Support SIP features: secondary/backend SIP server, IPv4 (IPv6 futhur). Support codecs: OPUS, G711U, G711A, GSM, MP3, WAV. |
|
Amplifier |
|
|
Amplifier |
Built-in 15W Amplifier |
|
General |
|
|
Material |
Metal |
|
Rate Power |
15W |
|
Power Supply |
PoE or DC 12V |
|
Installation |
In Ceiling |
|
Dimensions |
200 x 90 mm |
|
Weight |
1 KG |
|
Languages |
English |
|
Warranty |
2 years |
|
Package Includes |
Network Ceiling Speaker |
Our Advantage
Customized--We are the manufacturer! sample &OEM&ODM are available!
Safety--We have own test chart; all of our products have been rigorously tested in the factory.
Certification--We have CE, Fcc and quality management system certification.
High Quality --Our company uses the most advanced equipment to make the best quality products.
Company Profile
TONMIND specializes in network audio technology. Through ongoing technological innovation, Tonmind is dedicated to enhancing and pushing the boundaries of product performance. We are committed to providing customers with cost-effective, reliable, and consistent IP Audio solutions.
