Public Address and Voice Evacuation System Manufacturer – SIP & ONVIF IP Speaker Solutions
Enhance Communication and Safety with Tonmind's Advanced IP-Based PA and Voice Alarm System
Reliable Public Address and Voice Evacuation Systems Built for Critical Communication
Xiamen Tonmind Technology Co., Ltd. specializes in manufacturing high-performance IP-based Public Address and Voice Evacuation Systems, designed for real-time communication and emergency broadcasting across various environments.
With deep integration capabilities using SIP protocol and ONVIF compatibility, our Tonmind IP Speaker Series offers smart, scalable, and secure solutions trusted by security integrators, government facilities, transportation hubs, schools, and industrial sites worldwide.
We are actively seeking ODM, OEM, distribution, and wholesale partners for global cooperation.
Complete IP Speaker Range Tailored for Every Scenario

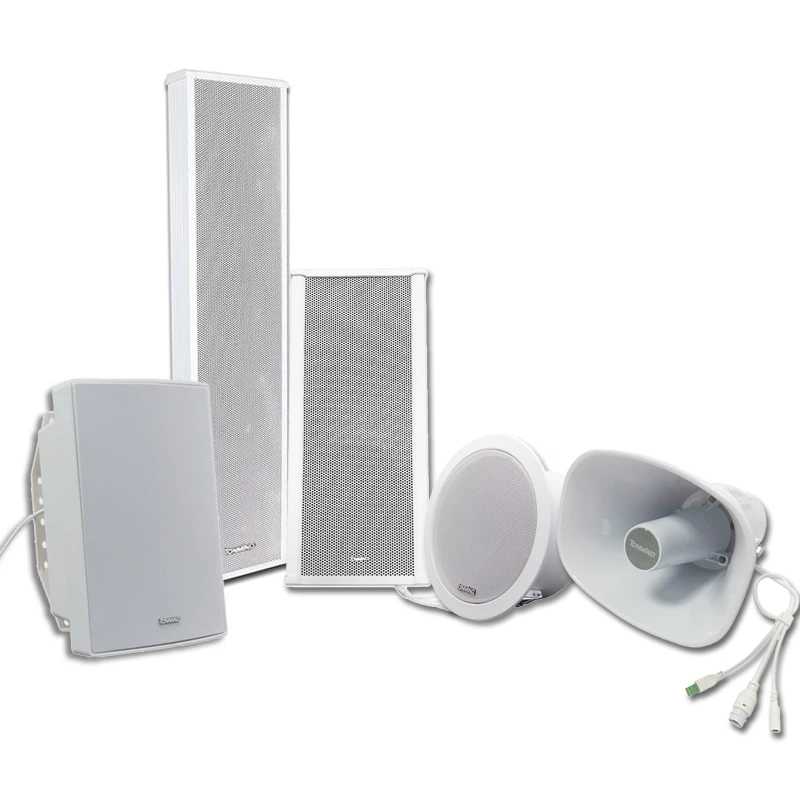

Our advanced speaker lineup includes:
✅ IP Horn Speaker
- Ideal for outdoor installations and large areas
- 15W / 30W high-output power options
- Built-in two-way intercom support
- ONVIF-compliant for easy CCTV/fire alarm system integration
- 48K OPUS audio codec ensures clear, intelligible sound even in noisy environments
- IP66/IP67-rated waterproof design for harsh weather resistance
✅ IP Wall Speaker
- IP55-rated waterproof for semi-outdoor and corridor applications
- Supports SIP, RTP multicast, and alarm inputs
- Broadcast pre-recorded messages or live audio over IP networks
- Durable ABS housing with wall-mount design
- Used in offices, schools, hospitals, and public buildings

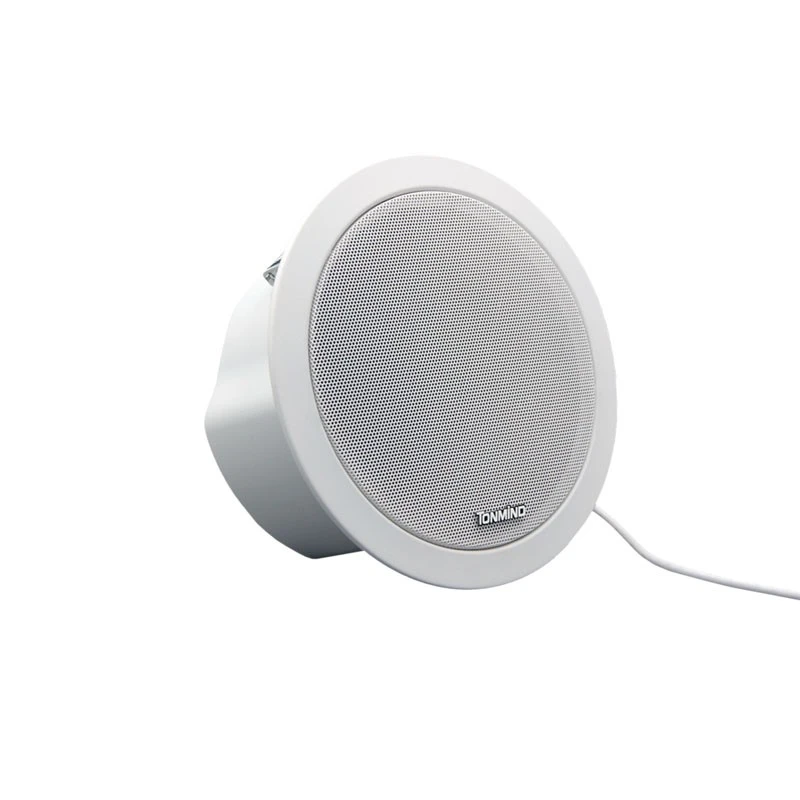

✅ IP Ceiling Speaker
- Clean, discreet design for indoor acoustic zones
- 15W / 30W amplifier, excellent clarity in enclosed spaces
- RTP multicast and SIP device integration
- Suitable for malls, classrooms, hotels, and airports

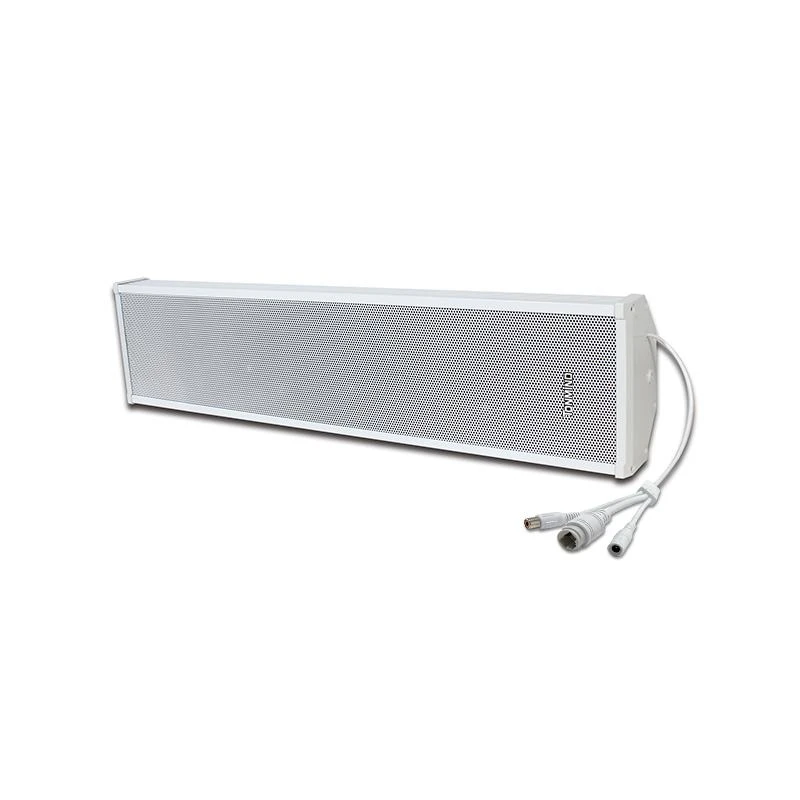

✅ IP Column Speaker
- Power options: 40W / 60W / 80W for long-range sound coverage
- Ideal for stadiums, warehouses, transportation terminals
- Compatible with ONVIF VMS, SIP servers, and HTTP API alarms
- Sleek vertical design ensures even sound distribution
Advanced Features that Set Tonmind Apart
- Two-way Intercom Communication
- Full SIP Compatibility – Seamless with IP PBX & SIP Phones
- ONVIF Support – Direct integration with IP camera systems
- RTP Multicast – For scalable audio zoning
- Alarm Input Integration – Instant playback of pre-recorded emergency messages
- High-Fidelity Audio – 48K OPUS codec, MP3, G.722, and G.711 supported
- PoE and DC Power Options – Simplified installation
- HTTP API Support – For system customization and remote control
- Multi-language support and user-friendly configuration interface

Specifications
|
Model |
S01 |
S01M |
S03T |
S03M |
S11 |
S11H |
S11T |
S11M |
S21 |
S21H |
S21T |
S21M |
|
Protocol |
SIP, ONVIF, HTTP, HTTPS, IPv4, DHCP, RTSP, RTP, RTCP, TCP, UDP, ARP, FTP, TFTP, NFS, NTP |
|||||||||||
|
Power |
PoE or DC 12V/24V |
|||||||||||
|
Codec |
OPUS 48 kHz, MP3 44.1 kHz, G.722 ADPCM 16 kHz, G.711 PCMU 8 kHz, G.711 PCMA 8 kHz |
|||||||||||
|
Network |
10/100Base-TX, RJ45 |
|||||||||||
|
Rated Power |
15W |
15W |
30W |
30W |
15W |
15W |
30W |
30W |
15W |
15W |
30W |
30W |
|
Max SPL |
96dB |
96dB |
110dB |
110dB |
101dB |
101dB |
105dB |
105dB |
113dB |
113dB |
120dB |
120dB |
|
Frequency Response |
100Hz- 18KHz |
100Hz- 18KHz |
93Hz- 20KHz |
93Hz- 20KHz |
80Hz- 20KHz |
80Hz- 20KHz |
80Hz-20KHz |
80Hz-20KHz |
300Hz- 8KHz |
300Hz- 8KHz |
350Hz-8KHz |
350Hz-8KHz |
|
Build in |
NO |
Yes |
NO |
Yes |
NO |
YES |
NO |
YES |
NO |
Yes |
NO |
Yes |
|
Alarm in |
Yes |
Yes |
Yes |
Yes |
Yes |
Yes |
Yes |
Yes |
Yes |
Yes |
Yes |
Yes |
|
Audio in |
NO |
NO |
NO |
NO |
NO |
NO |
NO |
NO |
NO |
Yes |
NO |
Yes |
|
Type |
Ceiling |
Ceiling |
Ceiling |
Ceiling |
Wall |
Wall |
Wall |
Wall |
Horn |
Horn |
Horn |
Horn |
|
Material |
Metal |
Metal |
Metal |
Metal |
ABS (IP55) |
ABS (IP55) |
ABS (IP55) |
ABS (IP55) |
ABS (IP67) |
ABS (IP66) |
ABS (IP67) |
ABS (IP66) |
|
Weight |
1.0KG |
1.0KG |
1.95KG |
1.95KG |
2.4KG |
2.4KG |
2.5KG |
2.5KG |
1.5KG |
1.5KG |
2.4KG |
2.4KG |
|
Size |
200*90 |
200*90 |
265*105 |
265*105 |
296*196 *157 |
296*196 *157 |
296*196 |
296*196 |
225*165 *240 |
225*165 *240 |
285*205 *290 |
285*205 *290 |
Video Presentation
Applications
- Emergency Voice Evacuation – Fire alarms, active shooter alerts, disaster warnings
- Campus & Classroom Announcements – Real-time paging and scheduling
- Corporate & Industrial PA Systems – Background music, general communication
- Transportation Hubs – Airport gate announcements, platform instructions
- Smart Building Integration – Compatible with VMS, PBX, and automation platforms
Company Profile


Why Choose Tonmind as Your ODM Manufacturer?
✔ Over 10 years of audio and VoIP technology experience
✔ In-house R&D for hardware and software customization
✔ Full support for branding and product design under ODM cooperation
✔ Competitive factory pricing and flexible MOQ for distributors
✔ Proven deployments in over 30 countries
Let's Build Your Voice Alarm System – Together
Looking to develop a public address and voice evacuation solution under your brand? Tonmind provides complete ODM services, with support from design to delivery.
📩 Contact us today for pricing, technical consultation, and global partnership opportunities.
🔗 Visit www.onvifaudio.com to explore more.
