Product Details
The ONVIF Wall Speaker is equipped with a built-in microphone, offering the flexibility of engaging in two-way intercom communication. This feature enhances its functionality by enabling clear and effective communication between users, making it suitable for various applications where interactive communication is essential.
Utilizing the standard SIP protocol, the ONVIF Wall Speaker ensures seamless integration with other SIP-enabled devices, enhancing communication capabilities across different systems. Additionally, with the standard ONVIF protocol, this device can easily integrate with a wide range of IP cameras, VMS, and NVR systems from various brands available in the market, further expanding its compatibility and versatility.

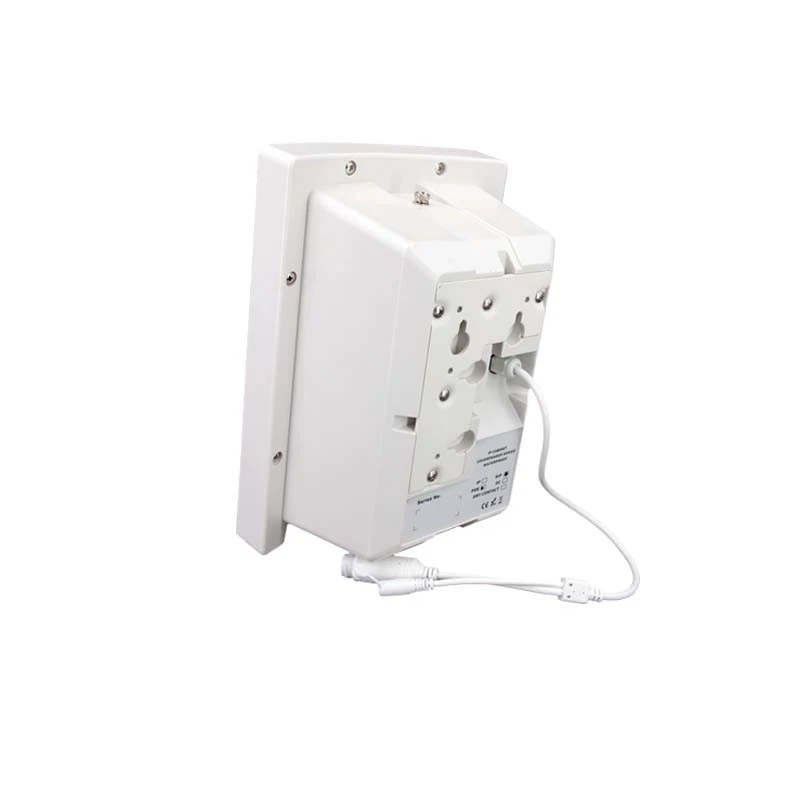

The design of the ONVIF Wall Speaker allows for flexible installation options, as it can be mounted either horizontally or vertically. This versatility makes it a convenient choice for exterior installations on buildings, such as under eaves, catering to diverse environments such as schools, offices, stores, and hospitals.
Equipped with a 48K OPUS Audio Codec, the ONVIF Wall Speaker delivers exceptional sound quality, ensuring clear and crisp audio output for various applications. Whether playing background music, making announcements, facilitating security measures, or integrating with fire alarm systems, this model offers reliable performance and superior audio quality for enhanced communication and operational efficiency.
ONVIF Wall Speaker Feature
• IP 55 waterproof design for installation on exterior of building.
• PoE eliminates need for local power supply.
• 48K OPUS Audio Codec enables excellent sound quality.
• Two-way intercom communication.
• Standard SIP protocol to compatible with other SIP devices.
• Compatible with IP Camera VMS/NVR via ONVIF.
• Support Pre-recorded messages.
• Support HTTP API for alarm in transmit.
• Support RTP Multicast as alternation of SIP backend system.
Specifications
|
Audio |
|
|
Codec |
OPUS 48 kHz, MP3 44.1 kHz, G.722 ADPCM 16 kHz, G.711 PCMU 8 kHz, G.711 PCMA 8 kHz |
|
MIC |
|
|
Built-in MIC |
Yes |
|
Speaker |
|
|
Max SPL |
101dB |
|
Frequency Response |
80Hz ~ 20KHz |
|
Frequency Range |
500-2KHZ +-10dB |
|
Harmonic Distortion |
0.1@1kHz |
|
Signal to Noise Ratio |
91dB |
|
Network |
|
|
Security |
Password protection, IP address filtering, Digest authentication, User access log |
|
Network Protocol |
SIP, ONVIF, HTTP, IPv4, DHCP, RTSP, RTP, RTCP, TCP, UDP, ARP, FTP, TFTP, NFS, NTP |
|
Network Interface |
10/100 Base-TX, RJ45 |
|
VoIP |
Support SIP protocol for integration with VoIP systems, integrated with SIP/PBX. Support ONVIF protocol for interaction with security systems, integrated with ONVIF VMS/NVR. |
|
Amplifier |
|
|
Amplifier |
Built-in 15W Amplifier |
|
General |
|
|
Material |
ABS (IP55 water-proof) |
|
Rate Power |
15W |
|
Power Supply |
PoE or DC 12V |
|
Interface |
Alarm in, DC Power, PoE |
|
Installation |
Wall Mounted |
|
Dimensions |
296*196*157mm |
|
Weight |
3KG |
|
Languages |
English |
|
Warranty |
2 years |
|
Package Includes |
IP Wall Mounted Speaker |
Our Advantage
Our committed R&D and QC team ensures strict quality control to meet your specific requirements. We offer excellent service customized to your needs, including production, processing, packaging, and more. Our products are known for their high quality, competitive pricing, and timely delivery. Our professional sales team is always ready to provide prompt and friendly assistance throughout the entire process. We are more than happy to accommodate small orders to meet your needs.
Company Profile
TONMIND specializes in network audio technology. Through ongoing technological innovation, Tonmind is dedicated to enhancing and pushing the boundaries of product performance. We are committed to providing customers with cost-effective, reliable, and consistent IP Audio solutions.
